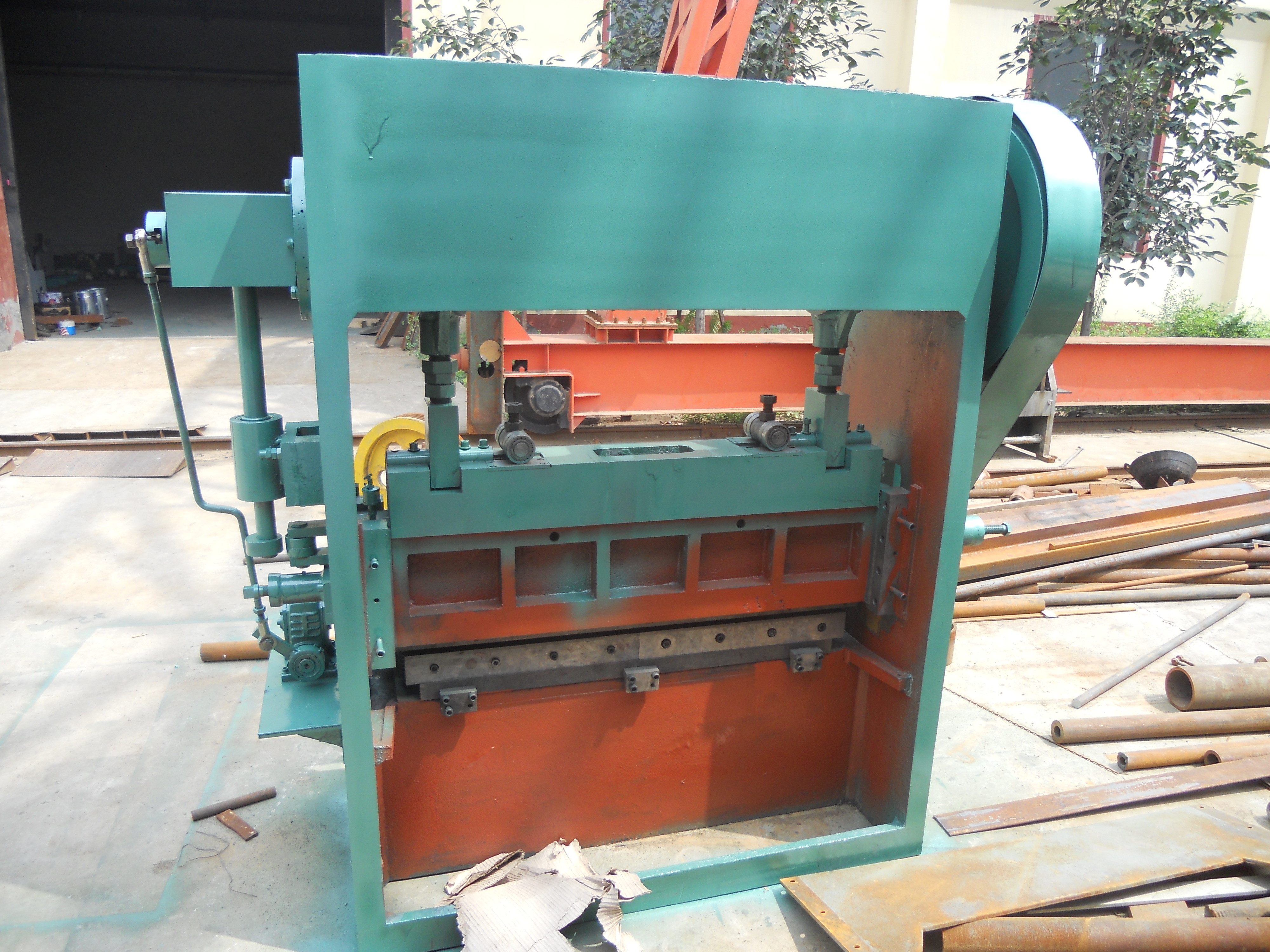

150/Min Expanded Metal Machine 1250mm Width 4kw 3 Years Warranty
| Place of Origin | hebei,China |
|---|---|
| Brand Name | diaozhuo |
| Certification | CE ISO |
| Model Number | JG25-25 |
| Minimum Order Quantity | 1 set |
| Price | 9000-10000usd |
| Packaging Details | wooden carton |
| Delivery Time | 20 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 set per 20 days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Thickness | Max 1.5mm | Width | 1250mm |
|---|---|---|---|
| Speed | 150/min | Distance | 0-1.2mm |
| Length Of Mesh | Max30mm | Motor | 4kw |
| Weight | 3ton | Measurement | 1940*1600*2010mm |
| After-sales Service Provided | Field Maintenance And Repair Service | Warranty | 3 Years |
| Name | Top Quality Expanded Metal Mesh Machine Hot Sale | ||
| Highlight | 150/min Expanded Metal Machine,1250mm expanded metal machine,4kw Expanded Metal Mesh Machine |
||
Product Description
1. Expanded metal wire mesh machine description
Expanded metal mesh also named expansion punched machine, stretched fence net mesh machine
Products widely used for door, vessel, decorative and many other filter parts
2. expaned metal mesh type we can produce
| type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 | JQ25-125 |
| thickness(mm) | max.1.0 | max.1.0 | max.1.5 | max.2.5 | max.5 | max.6 | max.8 |
| width(mm) | 500 | 1000 | 1250 | 2000 | 2000 | 2000 | 2500 |
| speed | 180/min | 150/min | 150/min | 70/min | 45/min | 60/min | 45/min |
| distance(mm) | 0-1.15 | 0-1.2 | 0-1.2 | 0-7 | 0-7 | 0-13 | 0-13 |
| length of mesh(mm) | max.20 | max.25 | max.30 | max.100 | max.200 | max.150 | max.200 |
| motor | 2.2KW | 3KW | 4KW | 11KW | 11KW | 15KW | 22KW |
| weight | 0.95T | 2T | 3T | 10T | 10T | 12T | 20T |
| measurement(mm) | 950*570*1780 | 1800*1320*1550 | 1940*1600*2010 | 2400*3500*2300 | 2400*3500*2300 | 3600*2500*3000 | 4500*2800*3000 |
3. One set machine include feeding machine+expanded machine+Electric control cabinet.
4. option machine: auto decoiler and auto recoiler
5. Production Process: automatic material feeding→metal plate expanding→cutting
6. The material plate request: galvanized plate, aluminum plate, steel plate,copper plate etc.
7. Feature:
*no scrap
*Exchange mold only,if the thickness is within the specified range,you can produce different mesh size with one machine
8. packing:wooden box for small machine; one set/40HQ for large machine.
9. Quotation request:
If you need a quotation,pls send us the material thickness.
10. after-sale service:
*supply professional ground foundation drawing for you.
*Guarantee period 3 years,other factories usually only 1 year.
*exchange the accessory free if non-human factor damage
*Supply Installation and workers training service.
*24 hours on-line service
*Every 2 years,engineers will go abroad to customer factory to get the suggestion,continue advancing

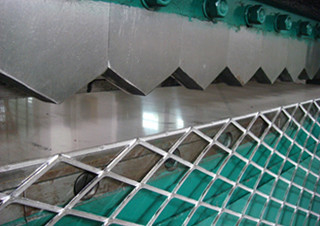

11. finished products
