1.5mm Expanded Mesh Making Machine Feeding Automatic 25T 40T 200T

  • 1.5mm Expanded Mesh Making Machine Feeding Automatic 25T 40T 200T
  • 1.5mm Expanded Mesh Making Machine Feeding Automatic 25T 40T 200T
  • 1.5mm Expanded Mesh Making Machine Feeding Automatic 25T 40T 200T
Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ-JQ25-6.3 DZ-JQ25-25 DZ-JQ25-45 DZ-JQ25-63 DZ-JQ25-100 DZ-JQ25-125
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/A, D/A, D/P, T/T
Supply Ability 10sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel And Steel Cast Feed Feeding Automatic
Punching Speed From 1 To 100 Mm Safety Machine Covered Safety
Engineers Available To Service Machinery Overseas Thickness 1.5 Mm
Highlight

1.5mm Expanded Mesh Making Machine

,

25T Expanded Mesh Making Machine

,

200T Expanded Mesh Making Machine
Leave a Message
Product Description

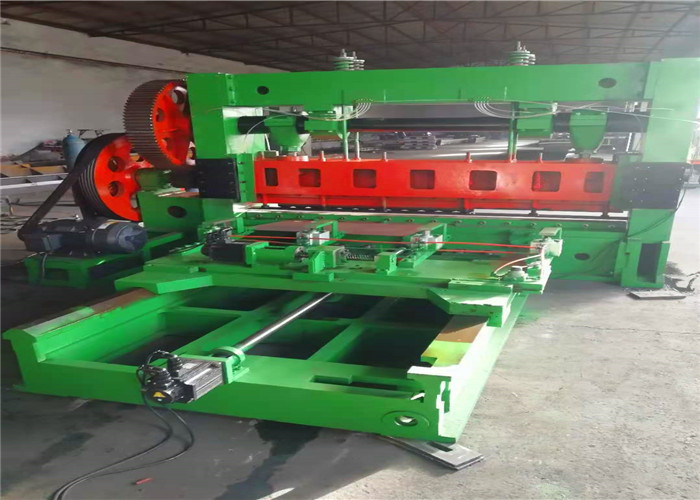

Expanded metal mesh making machine by sheet thickness 1.5 mm model DZ-JQ25-25





Raw material



The raw material can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.



Finished product usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts,

covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy

expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for

heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.



Different types for expanded metal machine



Small type: 6.3T , 16T , 25T

Middle type: 40T , 63T

Heavy type: 100T , 160T , 200T





Techincal parameter

Type JQ25-6.2T JQ25-16T JQ25-25T JQ25-40T JQ25-63T JQ25-100T
Material thickness(mm) Max1.0 Max1.0 Max1.5 Max3.0 Max4.0 Max6.0
Net Width(mm) Max600 Max1000 Max1250 Max1500 Max1500 Max2500
Punching Times/Min 300 160 160 80 67 55
Feeding Distance(mm) 0-10 0-10 0-10 0-10 0-20 0-20
Length of Mesh(mm) Max20 Max25 Max40 Max80 Max200 Max200
Motor Power( KW) 2.2 3.2 4.0 11 11 15
Weight( T) 0.95 2 3 6 10 12
Overal Dimension(mm) 950x570x1780 1800x1320x1550 1940x1600x2010 2870x990x2140 2400x3500x2300 3600x2500x3000



we also can make the machine according to the client's requirment
