Feeding And Cutting Expanded Metal Mesh Machine Roll Type Energy Saving
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZ |
| Certification | CE ISO9001 |
| Model Number | DZ500 DZ1000 DZ600 DZ1200 DZ2000 DZ2500 |
| Minimum Order Quantity | 1SET |
| Price | variable |
| Packaging Details | NUDE |
| Delivery Time | 20-30DAYS |
| Payment Terms | D/P, L/C, T/T |
| Supply Ability | 1 SETS PER MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MATERIAL | CAST STEEL | TYPE | FULLY AUTOMATIC |
|---|---|---|---|
| COLOUR | BLUE, GREEN, GRAY | FEEDING | ROLL AND SHEET BOTH |
| Highlight | 15KW Expanded Metal Mesh Machine,2500mm Expanded Metal Mesh Machine,ISO9001 Expanded Metal Mesh Machine |
||
Product Description

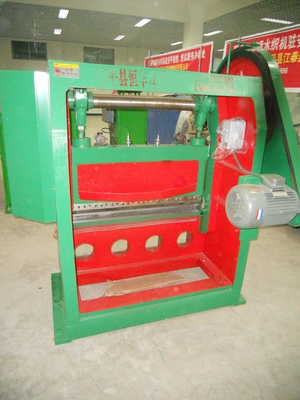

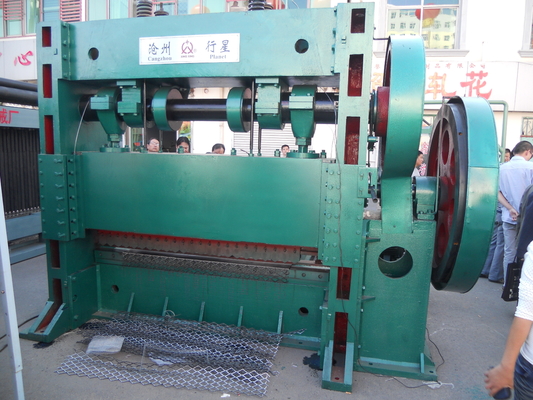

Roll Type Fully Automatic Feeding And Cutting Expanded Metal Machine
Expanded metal machine adopts the mature technologies of the past as well as new technologies such as: full-automatic lubricating, NC stepping motor feeding, etc.; it has good effect; controllability, stability and safety has been greatly increased; it has reasonable structure, elegant appearance, it is environmental production and energy saving
Material usage :It is suitable for the material as low carbon steel sheet, aluminium sheet,stainless steel sheet, aluminium magnesium alloy sheet,copper sheet,Nickel sheet.
Finished product usage:Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
main parameter
Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 |
Material thickness(mm) | Max 0.6 | Max1.0 | Max1.5 | Max2.5 | Max4.0 | Max6.0 |
Net width(mm) | Max600 | Max1000 | Max1250 | Max1500 | Max2000 | Max2500 |
Punching times/min | 180 | 160 | 160 | 80 | 67 | 55 |
Feeding distance(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
Length of Mesh(mm) | Max20 | Max25 | Max30 | Max80 | Max200 | Max200 |
Motor power(KW) | 2.2 | 3.0 | 4.0 | 11.0 | 11.0 | 15.0 |
Weight(T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
Oeveral diamension(mm) | 950x570x1780 | 1800x1320x1550 | 1940x1600x2010 | 2870x990x2140 | 2400x3500x2300 | 3600x2500x3000 |
