2mm 7mm PVC Wire Making Machine 70kg/hour Automatic Control Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1000 DZ2000 DZ2500 DZ3000 |
| Minimum Order Quantity | 1SET |
| Price | variable |
| Packaging Details | NUDE |
| Delivery Time | 10-20 DAYS |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 30 SETS ONE MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Colour | As Required | Type | Automatic Control Operation |
|---|---|---|---|
| Heating | Automatic | Product Name | Pvc Coated Wire Making Machine |
| Original | Hebei , China | Engineer | Available To Service Machinery Overseas |
| Highlight | 2mm PVC Wire Making Machine,7mm PVC Wire Making Machine,70kg/hour PVC Coated Wire Making Machine |
||
Product Description
Plastic Extrude Extrusion Insulation PVC coated wire Production line
material can be electro galvanized wire,hot dipped galvanized wire, iron wire.
This machine’s motor is inverter type motor whose frequency (speed) can be adjustable, in this way,you can save much power. This machine is for wire PVC coated by hot-extrusion with raw material such as polyethylene.

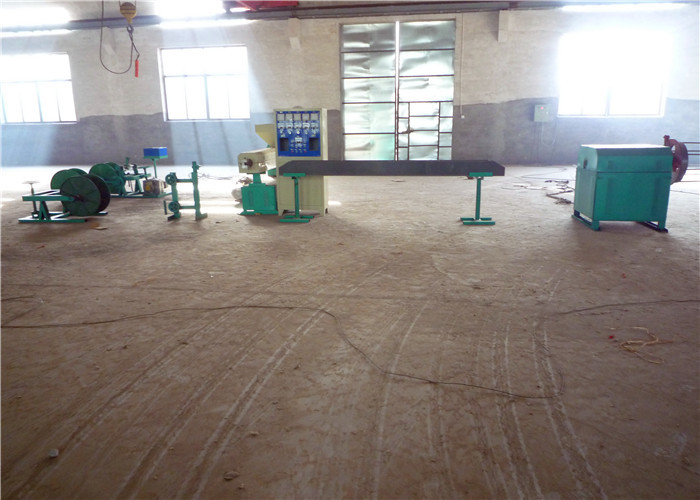

This production line consisits of pay-off,decoiler,straightening parts,extrude machine,electric control box(control temperature) and flume.(cool down the wire temperature and make it better look)
Wire pulling parts and wire recoiler.
This pvc coated wire machine can coat wire from 1-6mm.Coating depends on mould.We can make mould for customer requirement
Inverter with adjustable frequency,save power；
Working speed and temperature is adjustable;
Energy saving 30%;
High speed and high productivity;
| Input wire diameter | 1-6mm | Output wire diameter | 2-7mm |
| voltage | As requirement | PVC thickness | 0.8-2mm,usually 1mm |
| Max extrusion | 70kg/hour | Motor capacity | 15kw |
| Diameter of screw | 65mm | Height of center | 820mm |
| Screw rate | 25:1 | Extrusion overall size | 2400X820X900mm |
| Screw rotation speed | 80r/min | weight | 1600 kg |
| Production | 80M/min If output PVC wire 3.5mm and 1mm thickness PVC, production is around 3-4tons/ 10hours. | ||
