5mm 12mm Hydraulic Crimped Wire Mesh Machine 2000mm For Ore Screening
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1300 DZ1600 DZ2000 |
| Minimum Order Quantity | 1SET |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 WORING DAYS |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2-3SET ONE MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Could Produte Roll And Panel | Width | 1m, 2m, 3m, 4m |
|---|---|---|---|
| Specification | 5-12mm, 2000mm Width | HS Code | 8463300000 |
| Weave Method | Flat-Topped Curved | Weight | 1800kg |
| Highlight | 5mm Crimped wire mesh machine,12mm Crimped wire mesh machine,2000mm Crimped Wire Machine |
||
Product Description

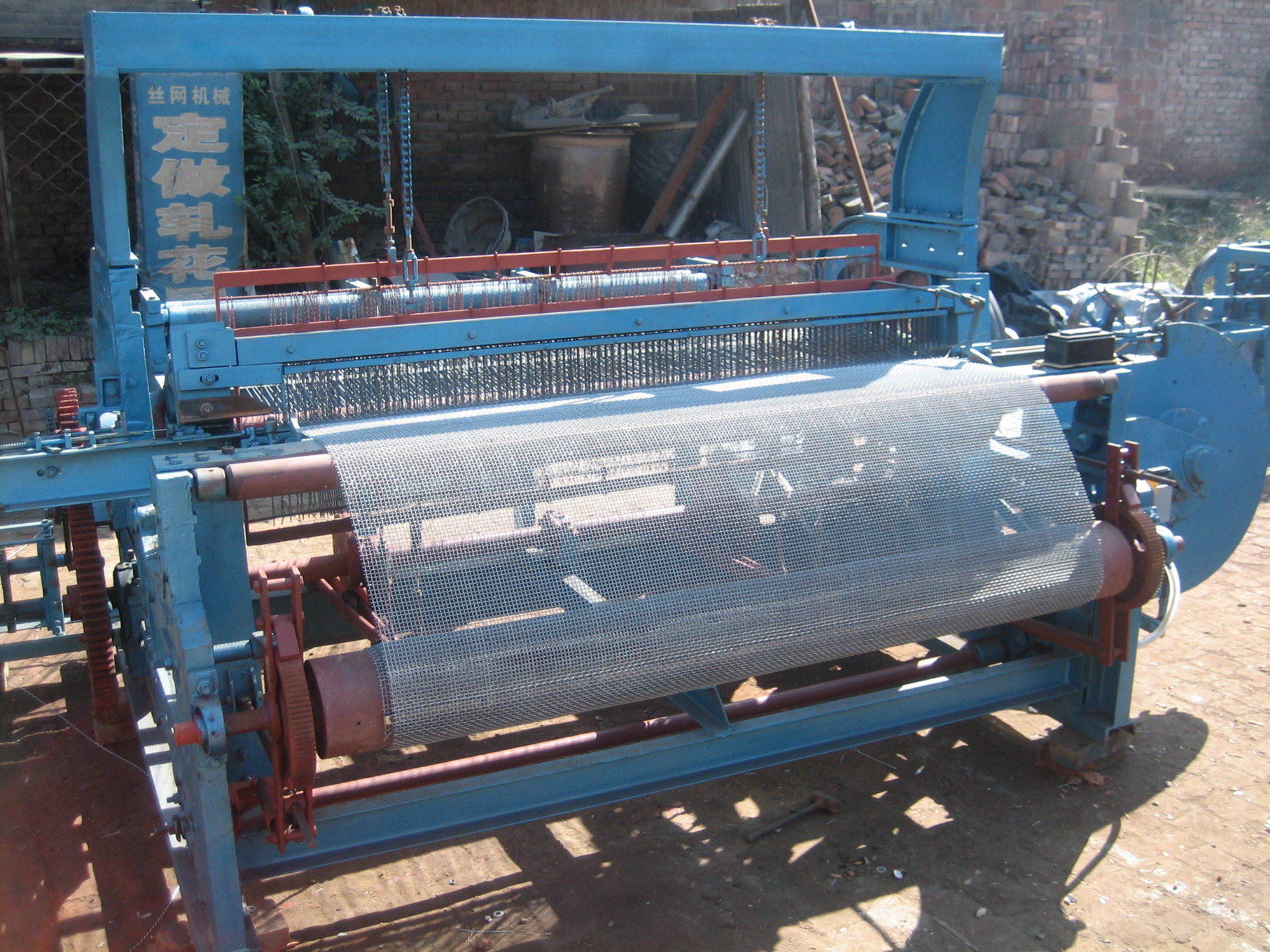

crimped wire mesh machine
Crimped wire mesh machine can be divided into three types: semi-automatic crimped wire mesh
machine, automatic crimped wire mesh machine, hydraulic Crimped Wire Mesh Machine
The new crimped mesh machine covers the type of old loom, the function is more than maturity, the standardization eagerly anticipates the wire mesh machinery new tidal current, its perfection manifests below:
1, the designation of outside can compare favorably with 130 shuttles loom, which is made in Japan
2, reform the spare part not be able to use in common, brings the trouble to user
3, create four kinds of weaving, so the crimped mesh machine are used more widely
4, strong, weave precisely
5, the times of shuttle belt is improving greatly (65 times/min)

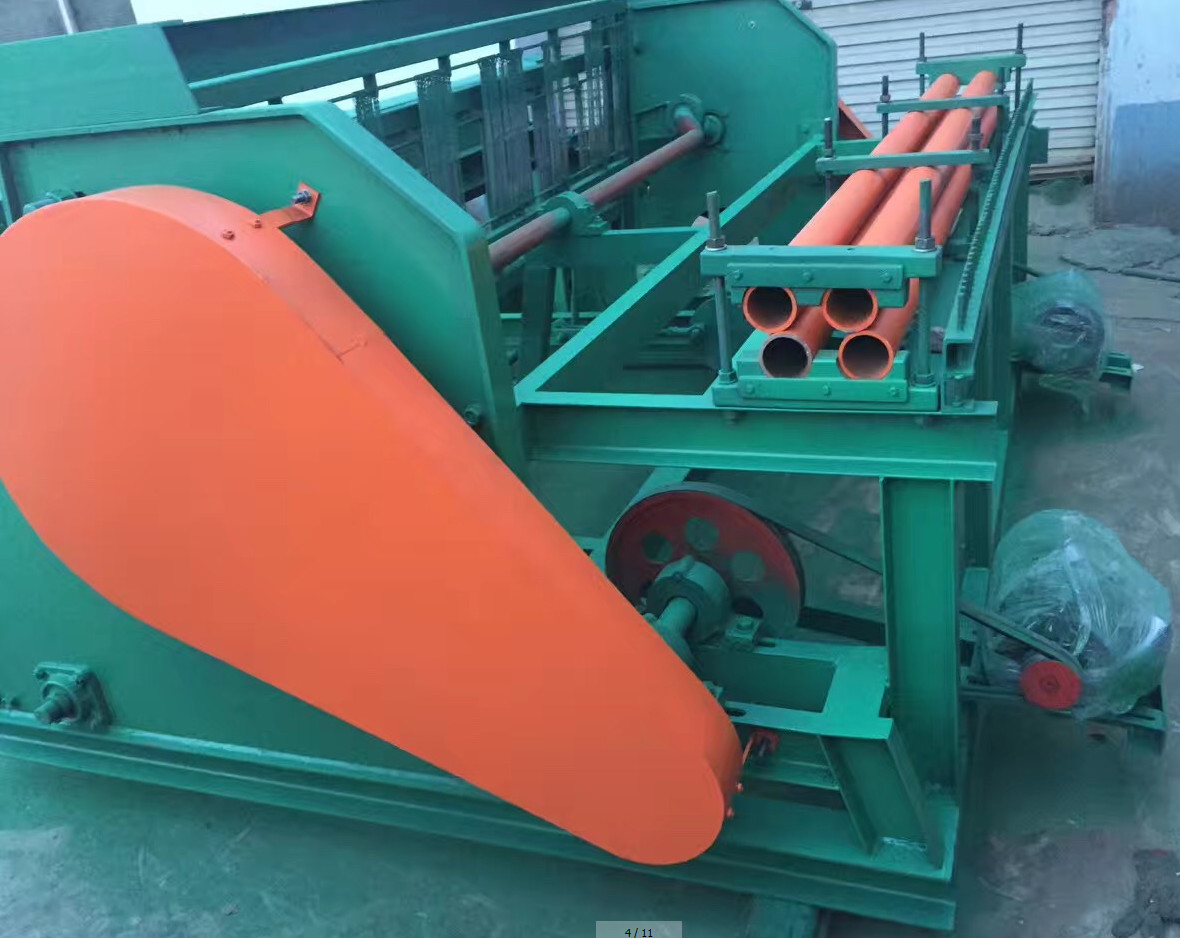

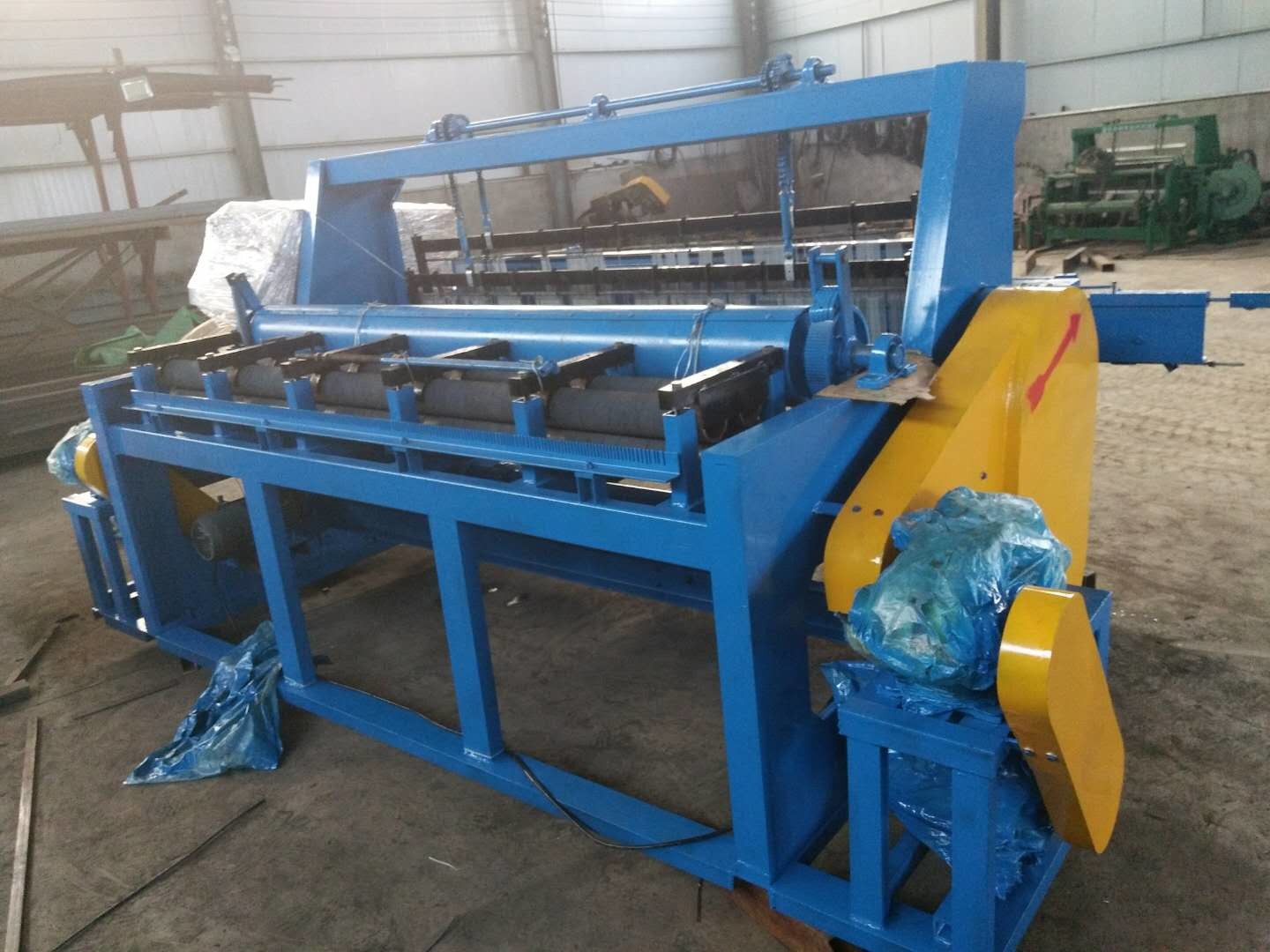

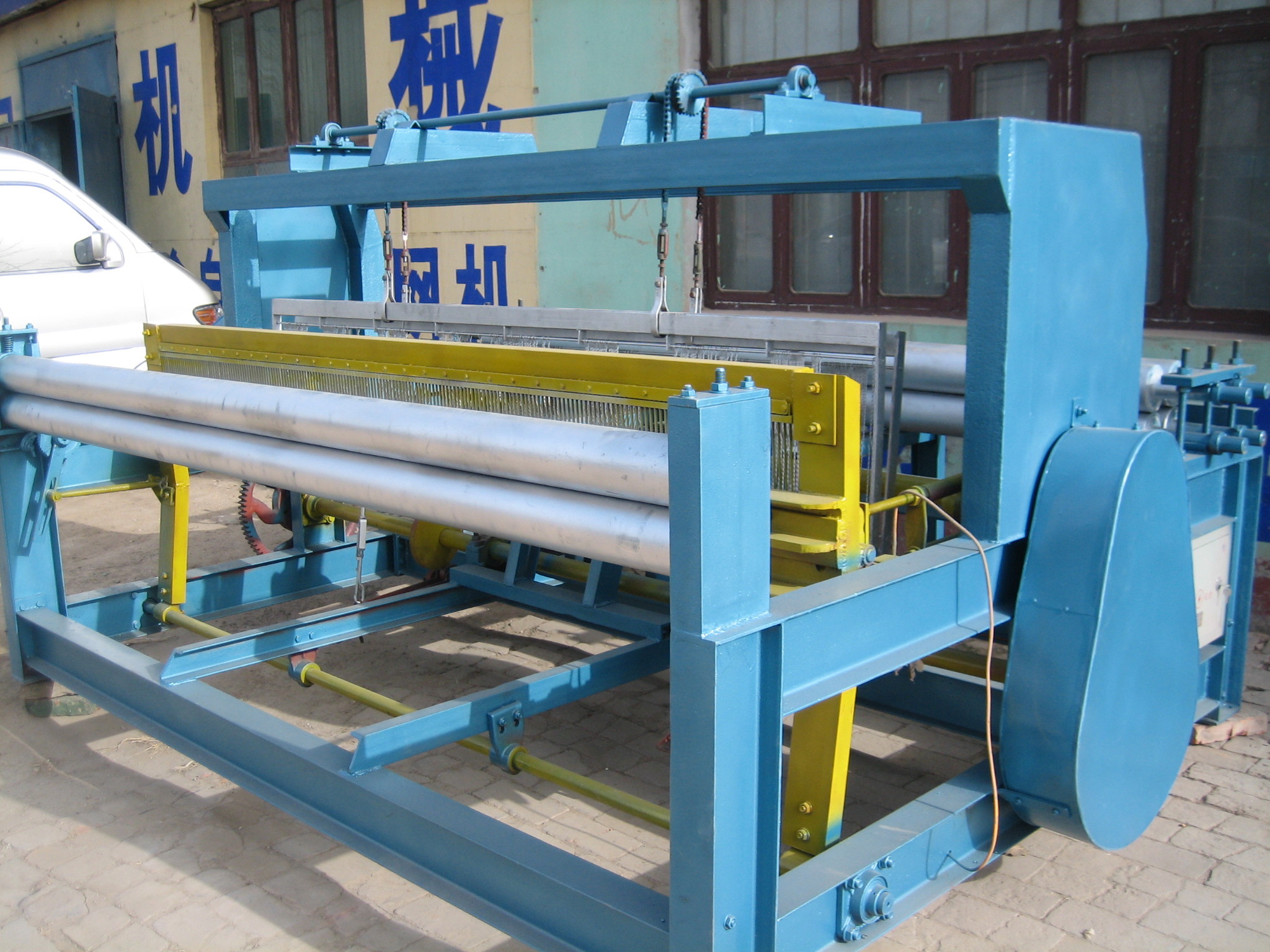

Supply new Semi-automatic crimped wire mesh machine for mine sieve mesh
The series of Semi-automatic crimped wire mesh machine weave crimped wire net of
steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the
machine after the thick wire is formed to crimp by the rolling machine. Breadth of thnet is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is2×2mm-80×80mm. The structure of the machine is compactness and rational.
It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

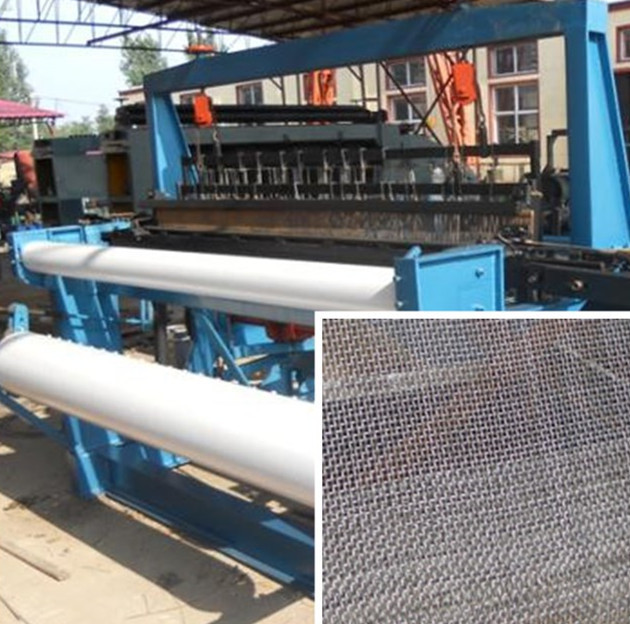

Hydraulic crimped wire machine is powered by high power rate electric machine and hydraulically controlled in knitting, changing headless, matting. It has the characteristics of stable performance, low noise, high knitting efficiency and sooth knitting mesh. This machine is mainly used for knitting big diameter mine sieving mesh with 4.0mm-12mm diameter and 2.0m width. Its products are mainly used in big mines, and coal fields to sieve and filter.
Main parameter of Semi-automatic Crimped Wire Mesh Machine:
Weaving width:0.9-2.5m
Wire diameter:6-12mm
Mesh:3*3-80*80mm
Quality certification:ISO:9001:2008
Main parameter of Hydraulic crimping wire mesh machine:
| type | Wire dia (mmm) |
Weaving Width (m) |
weight | Size (LXWxH) m |
Motor details | Wire feed speed in MM | ||||
| Driving power KW |
Power V |
|||||||||
| hydraulic crimped wire mesh machine | 4.0-12 | 2.0 | 2 tons | 3.5*3*1.8 | 5.5 | 380 | 15-20 | |||

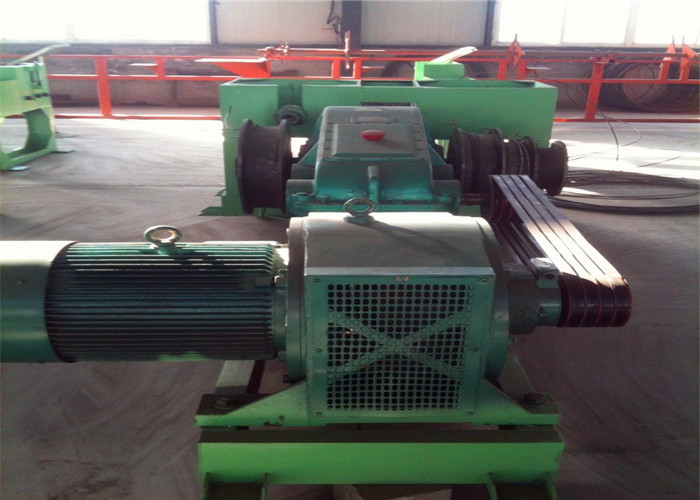

| Straightening and cutting machine | 1.4-12 | 800kg | 1.6*1*1.2 | 5.5*1 set 2.2*1 set |
380v/ 220v |
28 | ||||
| Flow rate | Hydraucylinder(mm) | Weight (kg) |
size LxWxH (MM) |
|||||||
| Hydraulic press | 40 pump | 100mm*1 80mm*1 |
400 | 700*500*800 | ||||||
Type1: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 0.2-2.0mm
Width: 1.0m
Mesh size: 0.8-15mm
Outside size:1500*1800*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,bobbin(30sets),uncoiler for roller,one mold
Type2: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-6.0mm
Width: 1.0--2.5m
Mesh size: 4--150mm
Outside size:3000*2200*1500mm
Weight:3.8Ton
Spare parts:wire crimping machine,bobbin(30sets),control system,one mold,cutter
Type3:semi-automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-8.0mm
Width: 1.0--2.5m
Mesh size: 2*2--200*200mm
Outside size:3500*2100*1300mm
Weight:2.8Ton
Spare parts:wire crimped wire machine,cutter,one mold
Type4: hydraulic crimped wire mesh machine
Technical parameter:
Wire diameter: 7--16mm
Width: 1.0--2.5m
Mesh size: according mold
Outside size:3200*2400*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,cutter,one mold,control system
If you need ,pls contact me !!!!
