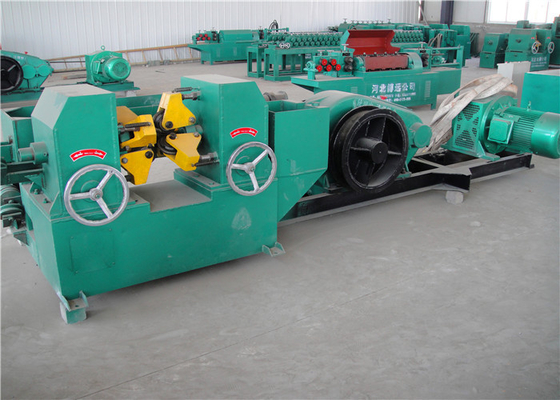

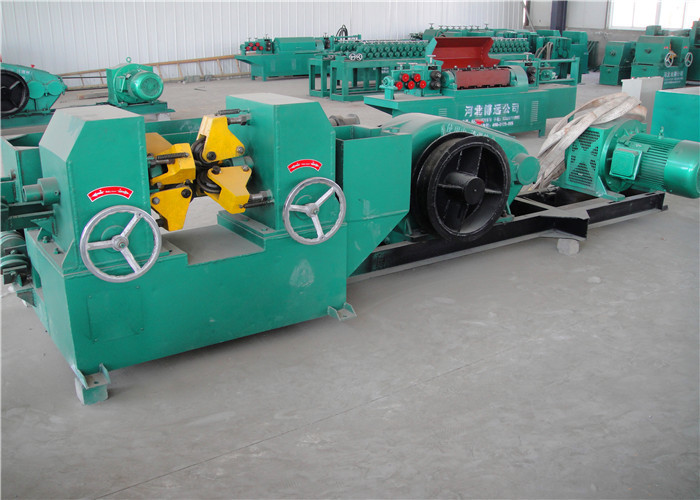

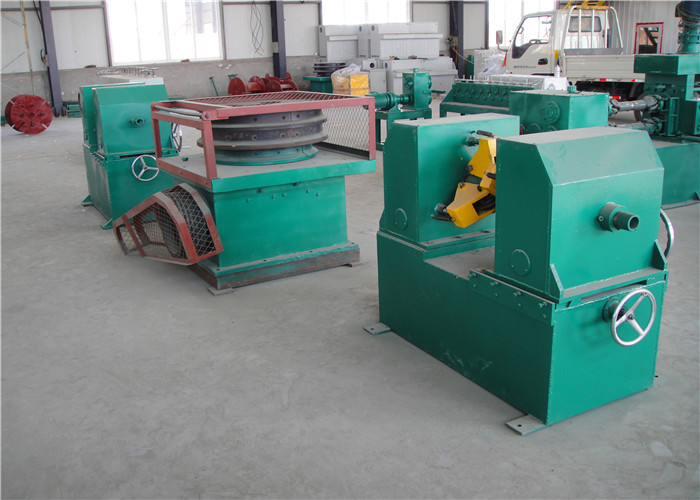

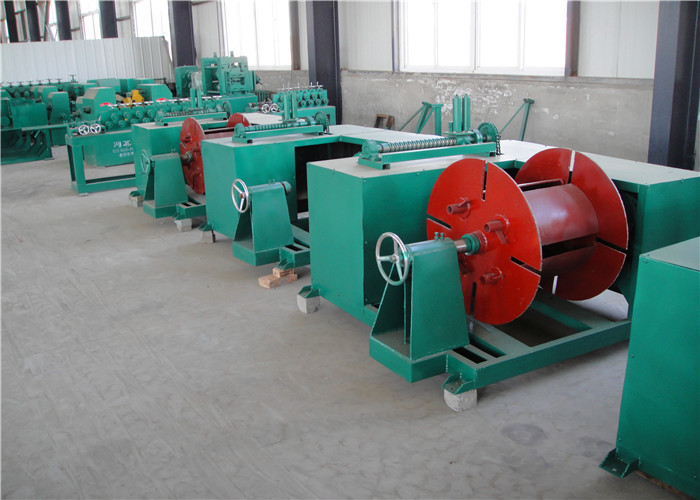

12mm Cold Rolled Ribbed Bar Machine 75m/Min 120m/Min High Speed
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-YL14 DZ-YL-11 DZ-YL-4 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 30-40days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cold Roling Twist Wire Making Machine | Engineer | Door To Door Services To Client's Factory |
|---|---|---|---|
| Services | 3 Years | Wire Diameter | 12mm |
| Outlet Wire | 4 Mm | Speed | Max 150 M/min |
| Highlight | 75m/min Cold Rolled Ribbed Bar Machine,120m/min Cold Rolled Ribbed Bar Machine,12mm Cold Rolled Ribbed Bar Machine |
||
Product Description
Ribbed screw crimped wire cold rolling wire mesh machine high speed
(1) Introduction of Rebar/Bar Ribbed Steel Cold Rolling Machine
1 Derusting Machine
The machine is close type, there have three rotary wheels inside, we could adjust it up and down, it is easier for the raw materials installation, we could put the wire rod inside, then adjust the wheels.

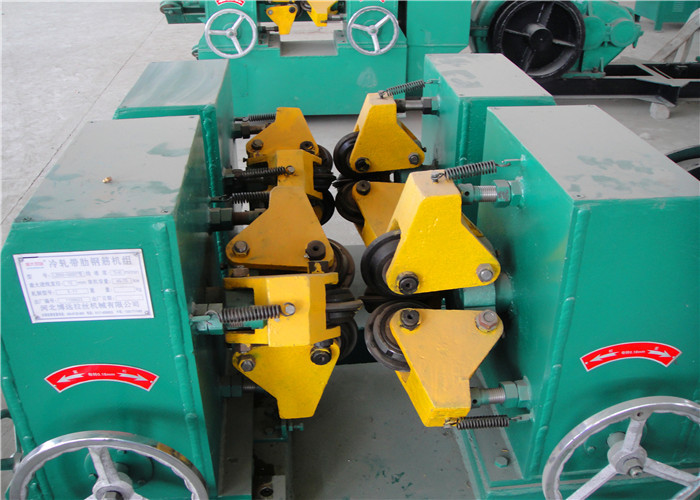

2. Rolling mill
The rollers’ angle should be 120°, at the same center, first rolling mill is mainly for reducing the diameter, second set of rolling mill is for making the rebar,
3. Plate Machine
The machine is with electromagnetic motor, it offer the power for the whole line, the motor speed could be adjusting, it will change the rolling speed.
4. Stress-Relieving Machine
This machine is mainly for reducing the machine hardness.
5. The Wire Drawing Machine matches the moment type motor, the mainly spare parts is the wire wheel
6. Straight Machine and Cutter
(2)Parameters of Rebar/Bar Ribbed Steel Cold Rolling Machine
| Model | 15000T | 20000T | 30000T |
| Power | 37.5kw | 66kw | 80kw |
| Max input wire diameter | 13.5mm | 14mm | 14mm/16mm |
| Output wire diameter | 4-12mm | 4-13mm | 4-14mm |
| Speed | 75m/min | 120m/min | 150m/min |
| Ribbed machine type | 150 | 180 | 180 |
| Recoiler weight | 1T | 1T | 1T or 2T |
| Weight | 4T | 6T | 7.5T |
| Working dimension | 16-20 | 16-20 | 16-20 |
