4.5mm 100m²/H Chain Link Fence Equipment For Railway
| Place of Origin | CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Model Number | DZ-2 |
| Minimum Order Quantity | 1SET |
| Price | 7500-8900USD |
| Packaging Details | ACCORDING TO YOUR REQUEST |
| Delivery Time | 30DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1SET PER 30 DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wire Diameter | 1.4-4mm | Warranty | 2 Years |
|---|---|---|---|
| Weight | 4.2T | Type | Fully Automatic |
| Product Name | Chain Link Fence Making Machine | Mesh Width | Max 4m |
| Color | Requirement | Usage | Weave Chain Link |
| Highlight | 4.5mm Chain Link Fence Equipment,100m²/H Chain Link Mesh Machine,100m²/H Chain Link Fence Equipment |
||
Product Description

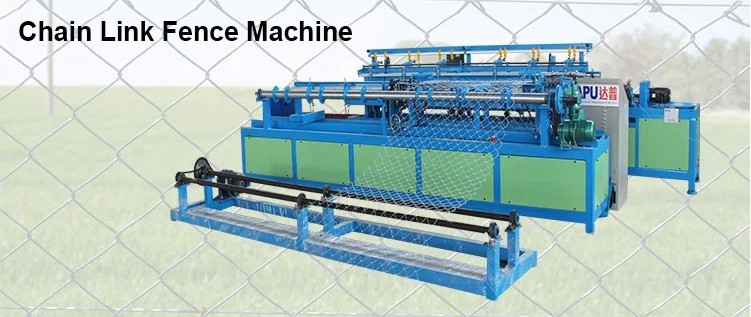

Fully Automatic Chain Link Fence Machine Doule Wire And Single Wire Can Customized
Working Principle

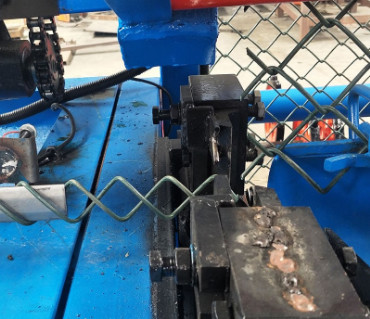

1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.
2. After passing from the die, the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.
3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.
4. The chain link is automatically wound to form rolls when the desired length is setted.
5. One side or both side of the end of net hole is twisted or with burr in edge.
6. Use rolling side machine to make it into rolls.
chain link fence machine type
| single wire chain link fence machine |
| double wire chain link fence machine |
Main Parameter
| Capacity | 80-120(m2/hour) |
| Wire Diameter | 1.8-4mmFeeding Wire Numbers: two and one |
| Size of Mesh | 40X40-108X108(mm) |
| Netting Width | 600-4000(mm) |
| Power | 3.0KW1set 4.0KW1 set 0.12KW 1set |
| dimension | L*W*H6500mm×4500mm×2500mm |
Advantage
1. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
2. One wire feeding which can reduce the breakdowns.
3. Wide width weaving scope: 1.8-4.5mm.
4. The high productivity for this machine can be 100m²/h.
5. The width scope can be 600-4000mm, and we can customize it for you.
6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.
Usage
The product is wildly used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
