120m2/h Automatic Chain Link Fencing Machine 6500X4500X2500MM
| Place of Origin | China |
|---|---|
| Brand Name | Diaozhuo |
| Model Number | DZ-2000 |
| Minimum Order Quantity | 1set |
| Price | USD 8000-12000 1 set |
| Packaging Details | 20ft |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 set / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 80-120(m2/hour) | Wire Diameter | 1.8-4mm |
|---|---|---|---|
| Size Of Mesh | 40x40-108x108mm | Netting Width | 600-4000mm |
| Power | 3.0KW1SET 4.0KW1set 0.12KW 1SET | Dimension | L*W*H:6500x4500x2500mm |
| Highlight | 120m2/h Chain Link Mesh Making Machine,120m2/h Automatic Chain Link Fencing Machine,80m2/h Automatic Chain Link Fencing Machine |
||
Product Description

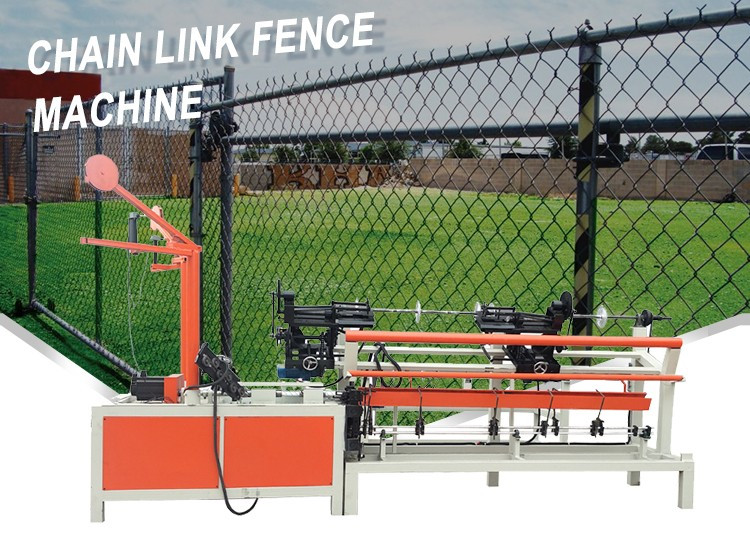

Chain Link Fence Machine
Full automatic chain link fence machine includes:main machine,weaving machine mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.The machine is controlled by PLC system,we can set the length of the fence by PLC program.
| Capacity | 80-120(m2/hour) |
| Wire diameter | 1.8-4mm feeding wire numbers:two and one |
| Size of mesh | 40x40-108x108(mm) |
| Netting width | 600-4000(mm) |
| Power | 3.0KW 1set 4.0KW 1set 0.12 KW 1set |
| Dimension | L*W*H:6500X4500X2500MM |
1. Through die, one rods of wire become diamond-shape.
2. And then diamond-shape wire connects with wire inside the winding shaft.
3. Mesh width and mesh opening can be customized as customers' will.
4. Application: extensively used as fences for playground and gardens, highway, railway, airport, port, etc.
5. This machine is well working in the hot weather condition, especially for Indian and Africa market.
Serve Motor
We use serve motors for our chain link fence machines which can provide the different working states:
1: High accuracy in speed and position control, it won't be changed when you adjust the speed.
2: Keep the stable-speed running and powerful torque condition, the high production is ensured.
3: At the high-speed running and powerful torque condition, the high production is enqured.
Working Principle
1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.
2. After passing from the die, the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.
3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.
4. The chain link is automatically wound to form rolls when the desired length is setted.
5. One side or both side of the end of net hole is twisted or with burr in edge.
6. Use rolling side machine to make it into rolls.
Advantage

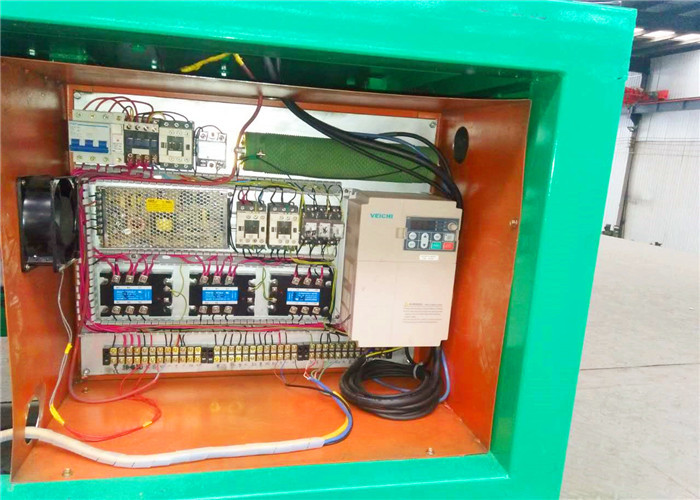

1. The machine is controlled by PLC automatic controller, so only one person is needed to
operate it.
2. One wire feeding which can reduce the breakdowns.
3. Wide width weaving scope: 1.8-4.5mm.
4. The high productivity for this machine can be 100m²/h.
5. The width scope can be 600-4000mm, and we can customize it for you.
6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.
Packaging and Shipping
Feature /advantage of chain link fence machine
1. Two sets mold for free.
2. Automatic alarm system.
3. Double wire system, more efficient.
4. Mechanical automatic roll wire mesh.
5. The main motor uses the servo motor.
6. The wire mesh width is adjusted automatically.
7. The machine is controlled by the touch screen.
8. Can be used with kinds of galvanized or pvc wire.
About after-sales service and installation machinery.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary $80 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility.
