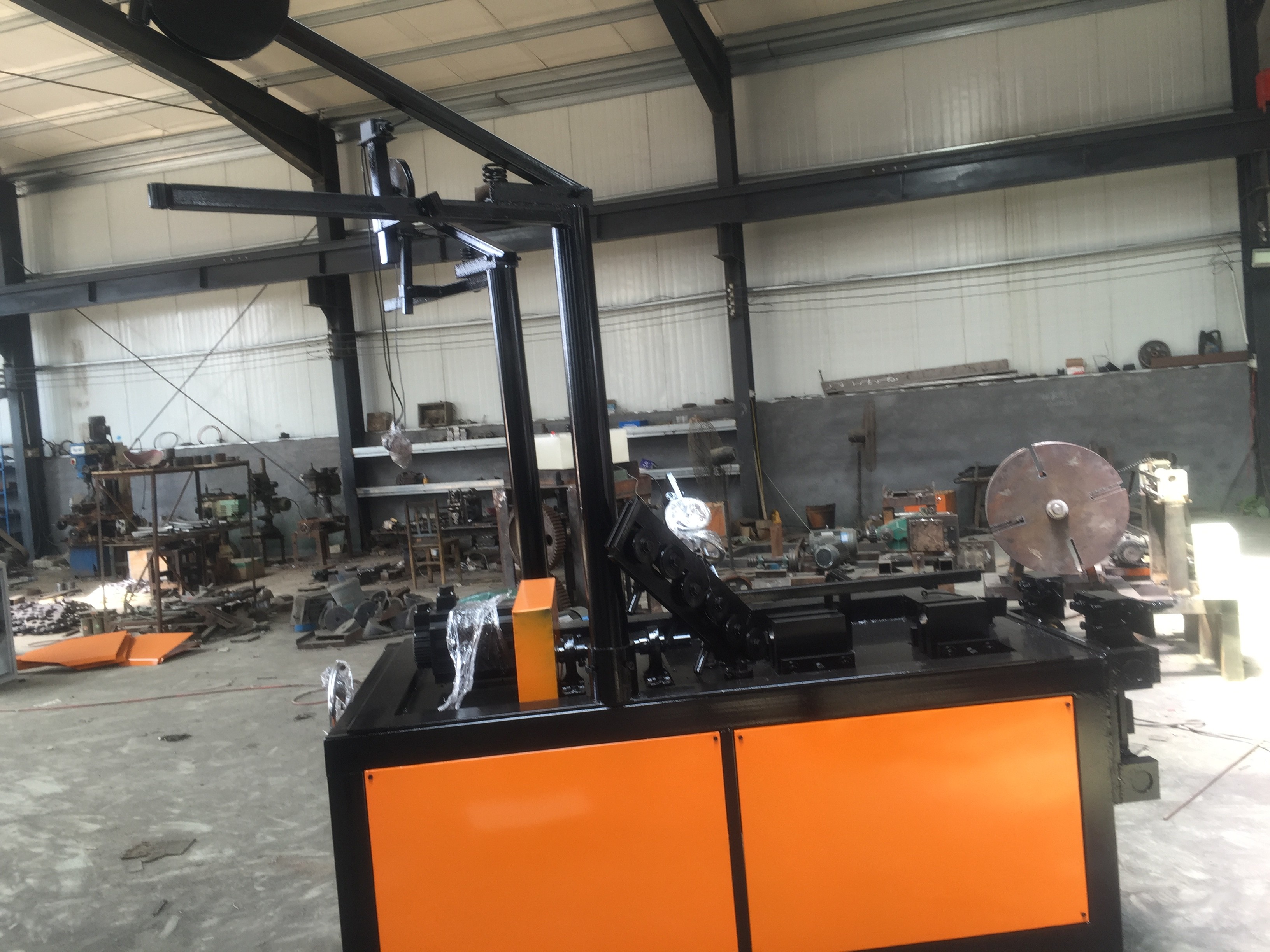

4000mm Diamond Mesh Machine , 120m2/h Chain Link Fence Making Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-GHW2000 DZ-GHW2500 DZ-GHW3000 DZ-GHW4000 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control | Servo Motor Driver | Sides | Twisted And Knuckled |
|---|---|---|---|
| Width | Max 4000mm | Color | As Request |
| Wire Dia | 1.6mm-4mm | Capacity | 80-120(m2/hour) |
| Feeding Wire | One Or Two | ||
| Highlight | 4000mm Diamond Mesh Machine,120m2/h Diamond Mesh Machine,120m2/h Chain Link Fence Making Machine |
||
Product Description
60*60 Mesh Opening Type 2 Feeding Wire Full Automatic Diaozhuo Chain Link Fence Machine
The chain link fence machine is also known as the diamond mesh machine, The chain link fence machine is a kind of wire mesh machine which is made of low carbon steel wire, stainless steel wire, aluminum alloy wire and PVC wire. The mesh has uniform mesh, smooth mesh surface and beautiful appearance. The width and width of the mesh are adjustable, the wire diameter is adjustable, the corrosion life is long, the knitting is simple, beautiful and practical.
Since the mesh body itself has good elasticity, can absorb external impact and all parts are immersed (dip or sprayed, painted), on-site combined installation does not require welding. Good anti-corrosion, it is a kind of fence net products for small stadiums, volleyball courts, tennis courts and the best choice for venues that are often impacted by external forces.Also they are widely used in highways, stadiums, parks, warehouses, zoo fences, construction site fences, captive poultry, slope greening, pipeline insulation nets, etc.
General size machine for reference:
| Product Name | Automatic Chain Link Fence Machine | |||
| Wire Diameter(mm) |
1.2-2.0mm Feeding Wire numbers:single(Note:Steel Wire Standard:GB3081-82) |
1.5-4.0mm Feeding Wire numbers:single(Note:Steel Wire Standard:GB3081-82) | ||
| Mesh Size(mm) | 20x20-50x50 | 25x25-100x100 | ||
| Netting width(mm) | 600--2000 | 600--2000 | ||
| Capacity(m2/hour) | 40-80 | 60-140 | ||
| Rated Voltage | 380V,50HZ | 380V,50HZ | ||
| Weight (T) | 2.8 | 2.8 | ||
| Outside Size | 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm | 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm | ||
