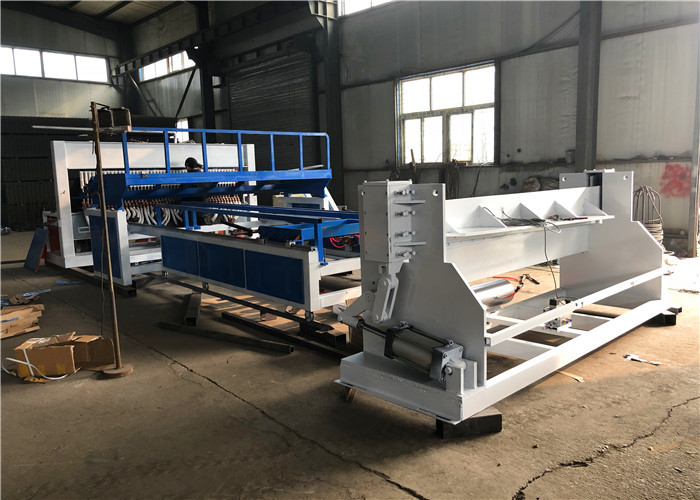

Villa Fence Automatic Mesh Welding Machine 4.0KW ISO9001 approved
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1500 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | nude |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 2-5 Mm Iron Wire, Galvanized Wire，drawing Wire | Control | Machinery Control Fully Automatic |
|---|---|---|---|
| Line Wire Feeding | By Coils Feeding | Cross Wire Feeding | Pre-cut And Falling Auto |
| Product Name | Welding Fence Machine In Rolls | Engineer | Available To Service Machinery Overseas |
| Highlight | Automatic Mesh Welding Machine 4.0KW,ISO9001 Automatic Mesh Welding Machine,4.0KW Fence Mesh Welding Machine |
||
Product Description
Water Cooling Welding Transformer Villa Fence Welded Fence Mesh Welding Machine
Full automatic wire mesh welding machine adopts mechanical eccentric wheel pressure, servo motor and precision reducer back and forth to pull mesh movement, so as to realize the perfect combination of mechanical motion and servo CNC system. Mesh size is easy and convenient to adjustis, maintenance is simple and operation cost is low. Longitudinal wire feeding adopts large disc feeder, system automatic detection, automatic feeding line wire, The cross wire is pre-cut automatic feeding by stepping motor controlled. So as to ensure that part of the servo dragnet pull even, The cross wire hopper can storage more cross wires, not easy to mess.The wire mesh welding machine is highly automated, saves labor and greatly improves production efficiency.
machine details:
1. This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, without welded tracks.
3. Easy to learn and operate, high speed, low price
4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5.Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Use of the product:
1. Welding for breed aquatic/animal cage mesh (poultry cage mesh, coop, pigeon cage mesh, bird cage mesh, chicken cage mesh, rabbit cage mesh, pet cage mesh and breed dog cage)
2. Building (reinforcing construction mesh, floor warming mesh, seed-bed mesh)
| Wire diameter | 2.0--5.0mm | Line wire form | From coil |
| Line wire distance | 50--300mm | Weft wire form | Pre-cut wire |
| Cross wire distance | 50--300mm | Rated voltage | 380V 50HZ |
| Mesh width | Max 2500mm | Transformer power | 3X160KVA |
| Welding speed | 45--60 times/min | Length of mesh | 50m |
| Welding spots | 24 | Dimension | 6m*2.3m*1.6m |
| Machine weight | 4.3T | Motor power | 4.0KW |
Straightening&cutting wire machine; Repairing mesh machine; Electric control cabinet; Wire plate(16 pcs); Electric scissors(2 pcs)
After-sale service:
1. We can offer installation and train the workers for the customers.
2. Guarantee time:one year since the chicken cage welding machine was installed at buyer's factory but within 18 months against B/L date.
3. We can help design the layout of the machine placed in the factory.
