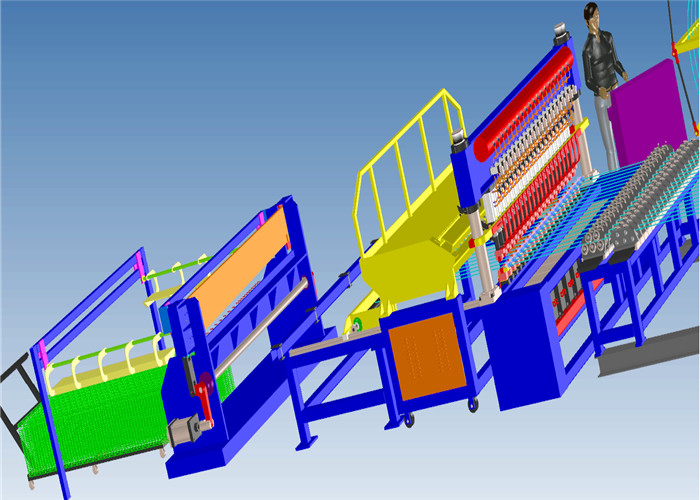

6mm Automatic Wire Mesh Welding Machine 55times/min With Mesh Cutting Line

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | 3-6mm Iron Wire, Galvanized Wire | Control | PLC Automatic |
---|---|---|---|
Line Wire Feeding | From Coils | Cross Wire Feeding | Pre-cut And Falling Auto Or From Coils |
Product Name | Welding Fence Machine In Rolls | Engineer | Available To Service Machinery Overseas |
Highlight | 6mm Automatic Wire Mesh Welding Machine,1200mm Automatic Wire Mesh Welding Machine,55times/min Wire Mesh Welding Machine |
Automatic 3 - 6 mm welding wire mesh fence machine rolling and panel
Packaging :
1. The spare parts and control cabinet will be loaded in wooden box.
2. The main machine is nude packing or plastic packing.
3. Also can do as customer's request.
Delivery:
20-40 days after the receipt of your deposit.
after sales services:
1. If buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port.
2. Maintenance period:One year for whole machine except vulnerable parts.
3. Number of technical persons :one technician per machine
4. Fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees.
5. During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Technical Parameters:
Model | 120B-1 | 120B-2 |
Input power | 380V 50 Hz | 380V 50 Hz |
Max. width | 1200mm | 1200mm |
Line wire space | 25—200mm | 25—200mm |
Cross wire space | 25—200mm | 25—200mm |
Line wire diameter | 1.8—3.0mm | 1.8—3.0mm |
Cross wire diameter | 1.8—2.5mm | 1.8—2.5mm |
Rated capacity | 60kva*2 | 60kva*2 |
Welding point No. | 16 | 16 |
Motor power | 2.2kw | 2.2kw |
Feed line wire | Coils wire | Coils wire |
Feed cross wire | Coil wire | Coils wire & pre-cut wire |
Cutting mesh | Automatic & manual | Automatic & manual |
Welding speed | 55times/min | 55times/min |
Weight | 2500kg | 2800kg |
Dimension(l*W*H) | 2500*1800*1400mm | 2500*1800*1500mm |
