65times/Min 8.5T Fence Mesh Welding Machine ISO9001 Approved
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ2000 DZ2500 DZ3000 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control | PLC And English Lanauage | Line Wire Feeding | Pre-cut |
|---|---|---|---|
| Cross Wire Feeding | Pre-cut | Engineer | Door To Door After Sales Services Aviable |
| Name | Fence Mesh Welding Machine | Material | Steel Welding |
| Highlight | 65times/min Fence Mesh Welding Machine,8.5T Fence Mesh Welding Machine,8.5T Wire Mesh Fence Machine |
||
Product Description

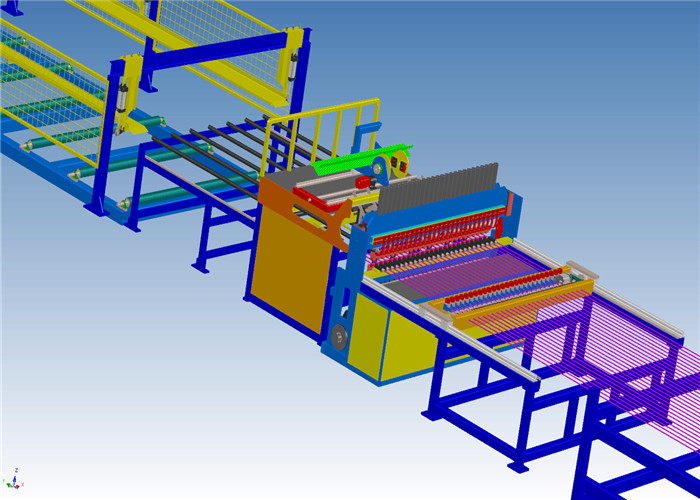

Fence Mesh Welding Machine Wire Diameter 5 - 12mm
Machine Details:
| Model | DZ2500C | DZ2500D |
| Wire diameter | 3-8mm | 5-12mm |
| Welding width | Max.2500mm | Max.2500mm |
| Longitude wire space | 100-300mm | 100-300mm |
| Cross wire space | Min.50mm | Min.50mm |
| Mesh length | Max.12000mm | Max.12000mm |
| Wire feeding way | Pre-straightened & pre-cut | Pre-straightened & pre-cut |
| Welding speed | 50-75 times/min | 40-65times/min |
| Welding electrodes | Max.24pcs | Max.24pcs |
| Welding transformers | 150kva*6pcs | 150kva*12pcs |
| Machine size | 8.4*3.4*1.6m | 8.4*5.5*2.1m |
| Weight | 5.2T | 8.5T |
Machine Deatils Explain:
1. synchronous control technique: This reinforcing steel rebar wire mesh welding machine adopts synchronous control technique, welding time and sub-control welding is controlled by PLC program system.
2. input panel: Touch screen and keyboard input panel forms make operation more intelligentized and reasonable.
3. weft wire hopper: Weft wire hopper driven by step motor is in fasion. Weft wire drops down to the accurate position automatically.
4. Line wire feeding device: Line wire feeding device driven by servo motor, feeds line wires automatically, saving human labor and improving welding efficiency.
5. mesh drawing system: Mesh drawing system driven by servo motor, improves the drawing speed and precision of mesh opening size.
6. Various mesh products: Welding products are in variety. 30 different kinds of grids can appear in the same mesh panel.
7. new transformer: New and high efficiency of welding machine transformer expands welding wire diameter scope. Water cooling system prolongs transformers' service life.
8. electrode coolling: The water cooling system of electrode prolongs electrodes' service life.
After Sales Aervices
1. Warranty: 12 months after machine installed except vulnerable parts. Under warranty, we'll change broken part for free if damage caused by machine itself.
2. Technician Number: one per machine
3. 24 hours support service.
4. Installation, training & maintenance: we provide complete installation instructions and circuit diagram. If needed, we'll send best technician to your factory for installation and training.
