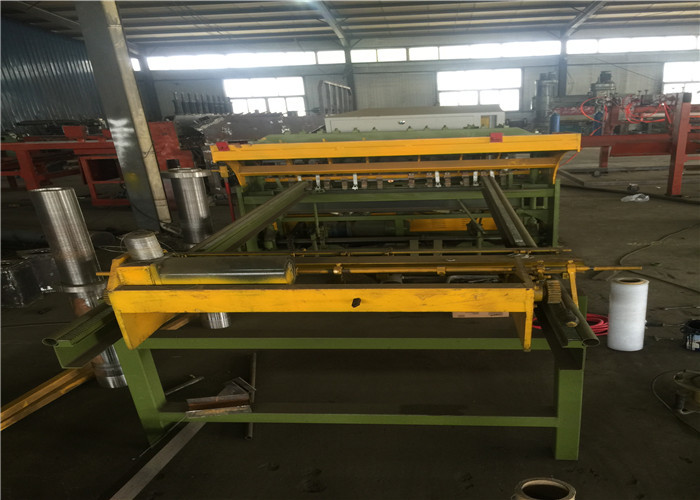

Agriculture Fence Mesh Welding Machine 50mm 300mm Welded Mesh Making Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1500 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | nude |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Material | Low Carbon Steel Wire, Black Wire, Galvanized Wire |
|---|---|---|---|
| Control | PLC Automatic | Line Wire Feeding | Pre-cut |
| Cross Wire Feeding | Pre-cut And Falling Auto | Control Screen | Touch Screen |
| Highlight | 300mm Fence Mesh Welding Machine,50mm Fence Mesh Welding Machine,300mm Welded Mesh Making Machine |
||
Product Description
CE high qulaity welded wire mesh fence machine 3 - 6 mm wire diameter
welding fence machine
Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC.
2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.
3. The longitude wires and cross wire distance can be adjustable by inputing the data what you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.
4. The finished product fence panel is smooth; the error of opposite angle line is small.
5. the line including straightener & cutting machine, 2 sets
| Model | DZ-250A |
| Wire diameter | 2.5-6mm |
| Longitude wire space | 50-300mm |
| Cross wire space | Min.25mm/12.7mm |
| Mesh width/height | Max.2.5m |
| Mesh length | Max.6m |
| Welding electrodes | 48pcs |
| Welding speed | 50-75 times/min |
| Welding transformers | 125kva*6pcs |
| Need air compressor | 0.3m^3 |
| Need power supply | Min.160kva |
| Overall Size | 5.4*3.2*1.7m |
| Weight |
4200kg |
