1250mm Metal Perforation Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-CKW250 DZ-CKW2000 DZ-CKW1500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engineer | Available To Service Machinery Overseas | Speed | 220 Mesh/min |
|---|---|---|---|
| The Precision Of Hole-punching | 0.1mm | Product Name | Perforated Metal Machine |
| Width | As Request | Power | 380V 50Hz |
| Highlight | 1250mm Metal Perforation Machine,380V Metal Perforation Machine,1250mm Sheet Metal Punching Machine |
||
Product Description

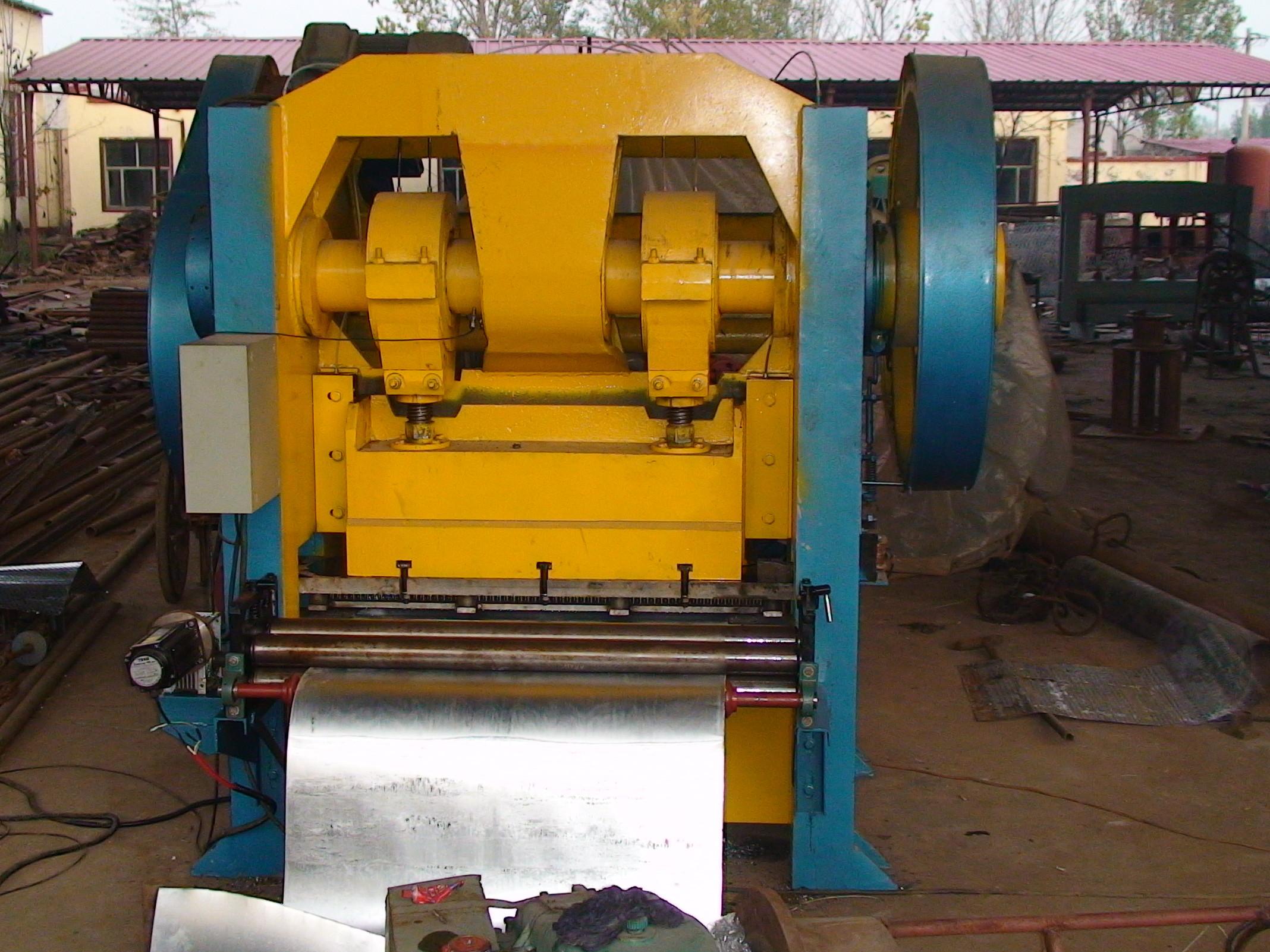

Full Automatic Width 1250MM Precise Perforated Metal Machine
This perforated metal machine adopts steel plate welded gantry structure, single and double shaft mechanical and numerical control step feeding,with special mold base, suitable for continuous production of windproof dust suppression net,round hole, square hole,polygonal and special mesh,also available in chemical machinery,dry cleaning machines,sound-absorbing equipment,refrigeration equipment (central air-conditioning) speakers,handicraft production, paper punching, filtration equipment and other industries.
CNC punched machined products can be used to cross the urban area of the highway, railway,subway and other transportation municipal facilities in the environmental protection noise barrier,building body walls,generator rooms,factory buildings,and other noise sources of sound insulation noise punching plate.The processed hole shapes are:round holes,oblong holes,square holes,triangular holes,convex holes (fish scale holes),diamond holes,hexagon holes,cross holes,and can be customized.
Please check the details about the machine:
| Model | DZ31G-80 | DZ31G-125 | DZ31G-160 | DZ31G-200 |
| Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
| Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
| Slide Stroke(MM) | 30 | 30 | 30 | 30 |
| SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
| Max Die Height(MM) | 360 | 400 | 400 | 420 |
| Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
| Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
| Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
| Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
| Motor Power(KW) | 11 | 18.5 | 22 | 30 |
| Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
| Net Weight(KG) | 9000 | 11500 | 15000 | 19000 |
