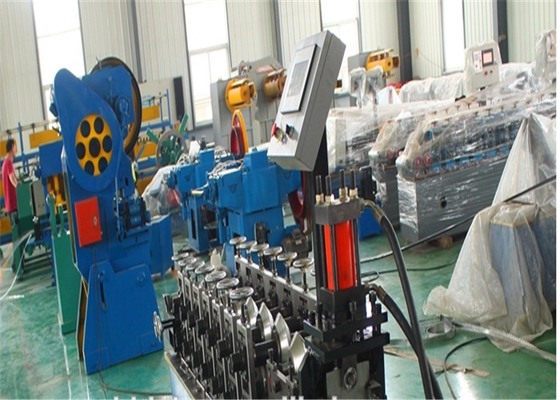

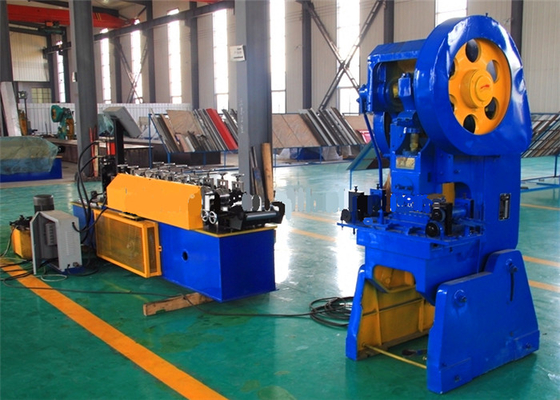

25*10mm Corner Bead Roll Forming Machine PLC control 15m/min
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-QJW30 DZ-QJW50 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engineer | Available To Service Machinery Overseas | Speed | 100-200m |
|---|---|---|---|
| Material | Iron Sheet Galvanized Sheet | Width | 30 40 50 |
| Product Name | Angle Bead Mesh Machine | Mesh Size | 25*10mm |
| Highlight | 25*10mm Corner Bead Roll Forming Machine,15m/min Corner Bead Roll Forming Machine,Stopper Bead Roll Forming Machine |
||
Product Description
Tie Galvanized standard Thin Coat Angle Bead roll forming machine with PLC control
stopper bead roll forming machine
Description
plaster stopper bead roll forming machine is used to produce the angle bead which is used in plaster work for outside (external)corners of concrete columns of wall
Advantages
1. High speed can reach to 12-15m/min.
2. PLC control, easy operation
Usage
plaster stopper beads is used in plasterwork for outside (external)corners of concrete columns of wall.
Technical details
| Mesh opening size | 25*10mm, according to the draw |
| Flange size | 50*50mm, according to the draw |
| Punching force | 16T |
| Material thickness | 0.2-0.7mm |
| Production speed | 12-15m/min |
Angle Bead:
various plaster bead, angle bead, stop bead made of expanded metal, in a comprehensive ranged to give extra speed, efficiency and better finishing for the wall surface.
The use of plasterer angle beads helps the formation of joints, corners, edges and abutments which are resistant to chips, cracks and impact damage.
Angle beads are manufactured in accordance with BS6452: Part 1: 1984. The galvanized steel used in the manufacture of angle beads is in accordance with international standard.
Materials: Galvanized steel or stainless steel.
Length: 2.7m
Expanded metal reinforcement has numerous applications in all types of building where extra strength and stability is required, as in footings and parapets.
Installation and commissioning
Machine to be installed and commissioned by SM technicians.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary US$100 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
Guarantee
Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer’s country.
