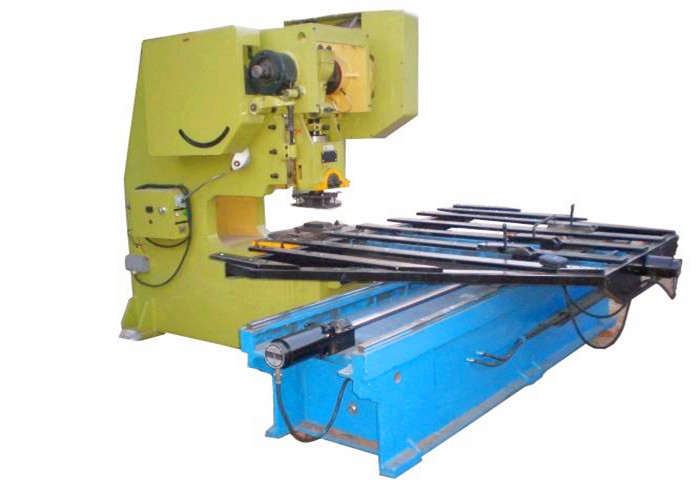

High Precision Perforated Mesh Machine 0.95Mpa Sheet Metal Perforating Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-CKW250 DZ-CKW2000 DZ-CKW1500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engineer | Available To Service Machinery Overseas | Speed | 220 Mesh/min |
|---|---|---|---|
| Material | Steel Cast | The Precision Of Hole-punching | 0.1mm |
| Highlight | 0.95Mpa Perforated Mesh Machine,0.1mm Perforated Mesh Machine,Sheet Metal Perforating Machine |
||
Product Description
Sheet metal perforating mesh machine thickness max 20mm punching machine
Specifications of Punching Press:
The biggest size of working space 1250*2500mm
The biggest thickness of working part 20mm
The precision of the hole punching ±0.1mm
The axis number-controlling Four (X.Y.T.C)
The precision of repetition cocalization ±0.1mm
The power of the main electrical machinery 11kw
Power Source 30KVA
pressure 0.95Mpa
Consumption Quantity 0.1m3/min
The outside size(L*W*H): 5500*2560*3625 mm
The weight of the machine: 15.5T
the advantage of our machines:
1. Welded steel plate framework with high intensity of machine body.
2. The middle crankshaft adopts special rolling bearing,and the precision roller bearing is adopted for front and rear side.
3. Combined pneumatic friction clutch and brake.
4. Equipped with hydraulic overload protecting device.
5. Eight-side precision needle roller guide rail.
6. Pitman screw locked up with oil pressure.
7. Electric shut height adjustment with digital display.
8. Equipped with lifting balance cylinder device.
9. Duplex valves imported from Japan.
10. Control by PLC with international brand.
11. Buttons,indicators,AC contactors,air circuit breakers and other controlling devices are imported from international brand.
12. Electronic cam device with intelligent top dead center stop function and several safety function.
Optional air cushion device,NC feeding machine,light curtain and inverter with international brand to fulfill stroke adjustment.
