Pulley Wire Drawing Machine 2000KG For Metal Mesh Factory
| Place of Origin | CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ500 DZ650 DZ900 DZ1000 DZ1300 |
| Minimum Order Quantity | 1SET |
| Price | variable |
| Packaging Details | NUDE |
| Delivery Time | 5-10 DAYS |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 30 SETS ONE MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| COLOUR | Blue , Green And Gray | TYPE | Automatic |
|---|---|---|---|
| FEEDING | Automatic By Stands | WELDING | Fast |
| ENGINEER | After Sales Services Door To Door | MATERIAL | LOW CARTON AND HIGH CARTON STEEL WIRE |
| Highlight | 6.5mm Wire Drawing Machine,2000KG Wire Drawing Machine,2000KG metal drawing machine |
||
Product Description

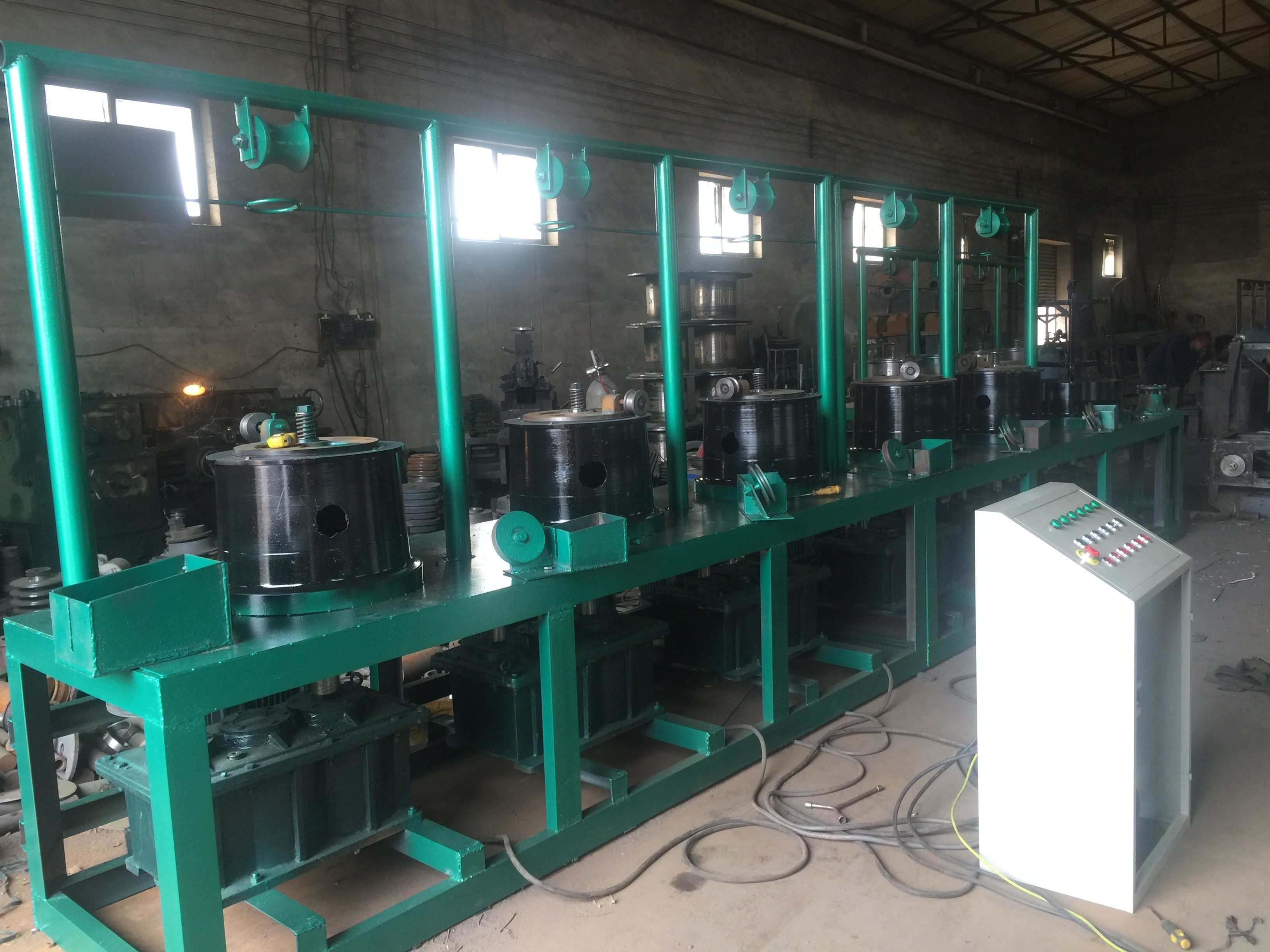

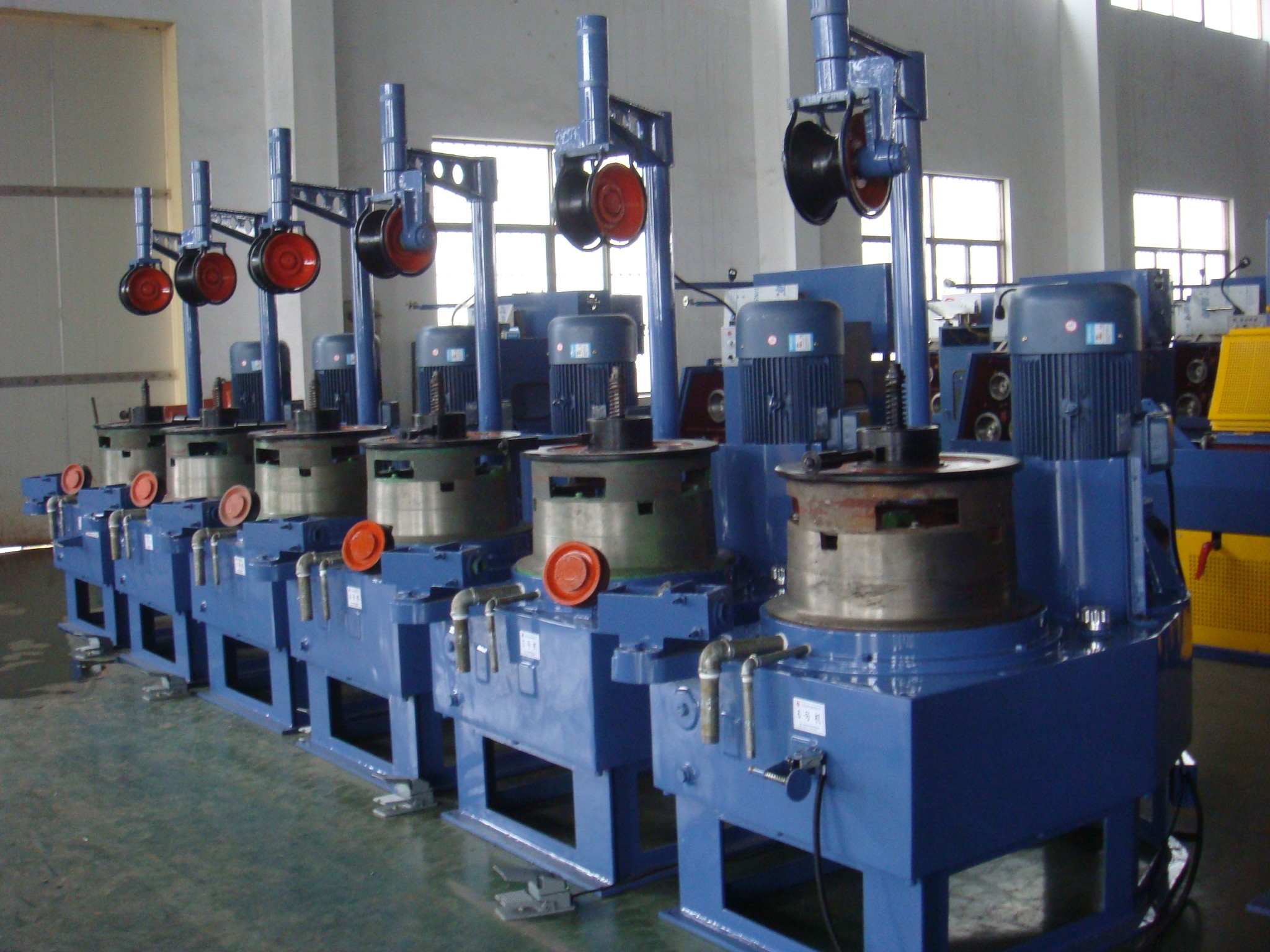

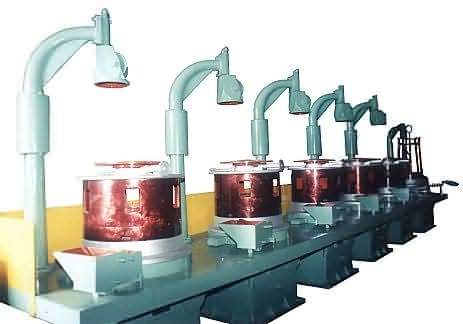

pulley type automatic high capcity speed wire drawing machine
The set of the machines is a ideal equipment drawing wire stock high, medium and carbon steel, as well as copper,alumium, and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
Main parameter
| Model | (Unit) | 560 | 450 | 350 |
| Inlet wire tensile strength | kg/mm2 | >110 | 128 | >140 |
| Max dia. of inlet wire | mm | 6.5 | 3.4 | 2.5 |
| Min dia. of outlet wire | mm | 2 | 1 | 0.75 |
| Drawing passes/Dia. of block | -- | 1-6/560 | 1-7/450 | 1-6/350 |
| Max average compressibility | % | 30 | 20 | 21 |
| Designed total compressibility | % | 78-88.5 | 77.9 | 78 |
| Max speed of block | m/min | 245 | 346.9 | 200 |
| Motor power/Block | kw | 18.5-30 | 7.5-11 | 7.5-11 |
| Weight | kg | 2000 | 1500 | 1000 |
|
Overall dimensions |
mm | 1700x1150x1750 | 1520x810x1700 | 1400x800x1500 |
