380V Mesh Panel Welding Machine 4.2T 200A Easy Operate
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-HQ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 60days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Votage | 380V/220V/415V/440V | Rated Duty Cycle | 10% |
|---|---|---|---|
| Current | 200A | Rated Capacity | 125KVA*6 |
| Product Name | 3d Curved Fence Panel Mesh Welding Machine | Engineer | Engineers Available To Service Machinery Overseas |
| Highlight | 4.2T Mesh Panel Welding Machine,380V Mesh Panel Welding Machine,200A Mesh Panel Welding Machine |
||
Product Description

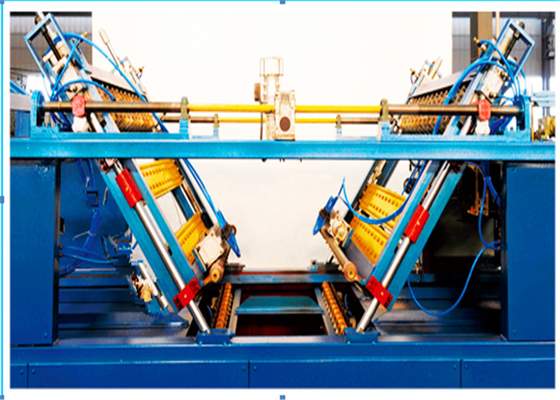

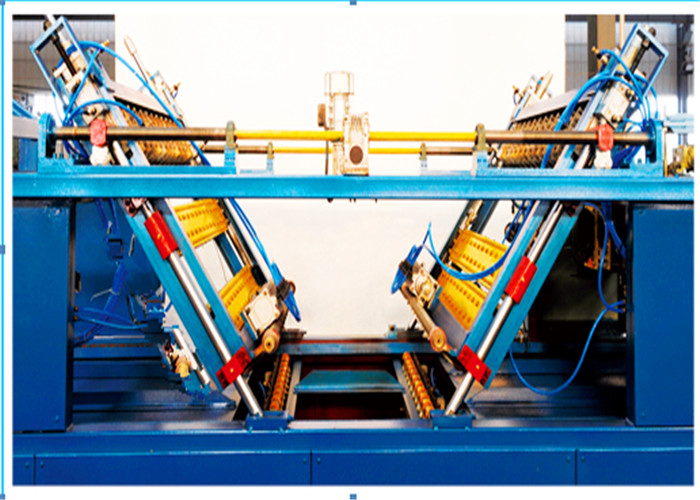

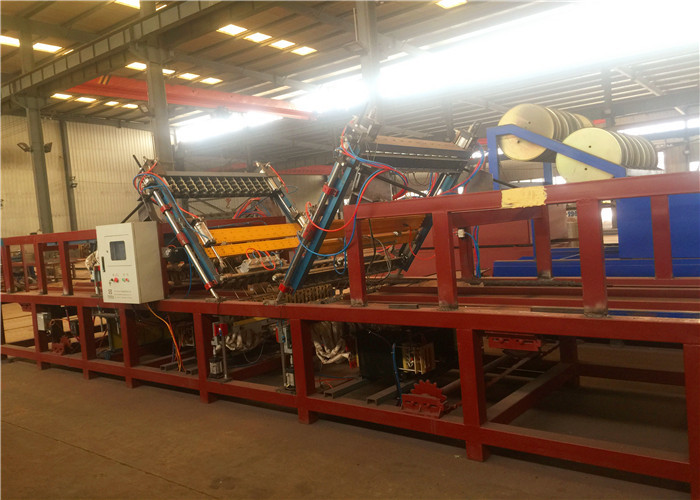

3 d curved fence wire wall panel mesh welding machine board panel welding machine
Main technologies
1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)
2. The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.

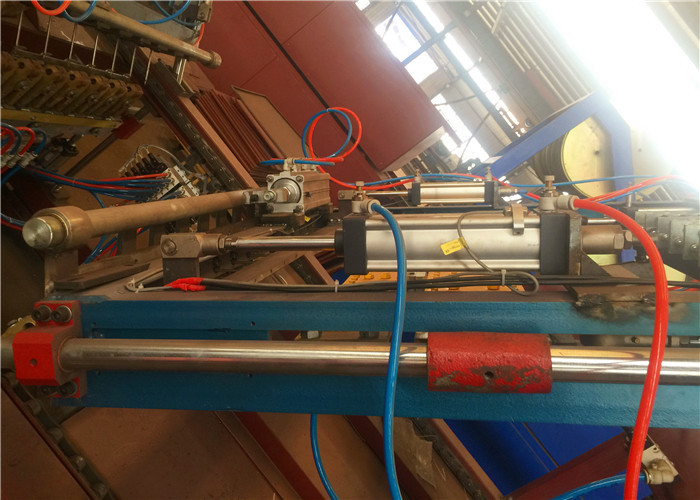

3. The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.
4. Pure red copper (upper) and chromised bronze (lower), durable.
5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.
6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.
Technical Parameters
| Model | DZ-HQ2500 | Wire diameter | 2.5-6mm/3-5mm |
| Line wire space | 50-300mm | Cross wire space | 25/12.5mm-300mm |
| Width of mesh | Max.2.5m | Length of mesh | Max.6m |
| Welding electrodes | 48pcs | Welding speed | 50-75 times/min |
| Rated electrical power | 125kva*6pcs | Needed power | Min.160kva |
| Weight | 4.2T | Overall size | 5.4m*3.2*1.7m |
After-sales service
1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
