1000Hz Reinforcing Mesh Welding Machine 1.2m Steel Grating Welding Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-GGB1200 DZ-GGB1000 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 60days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Duty Cycle | 10S | Product Name | Steel Grating Welding Machine |
|---|---|---|---|
| Usage | Medium Frequency Steel Grating Welding Machine | Bearing Flat Bar Range | 2*20mm-10*100mm |
| Cross Bar Range | 5*5-8*8mm | Rated Capacity | 250kva*10pcs |
| Highlight | 1000Hz Reinforcing Mesh Welding Machine,1000Hz Steel Grating Welding Machine,1.2m Reinforcing Mesh Welding Machine |
||
Product Description

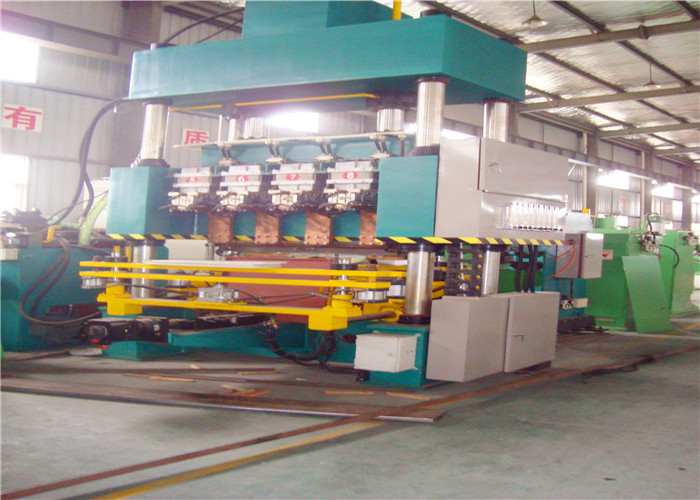

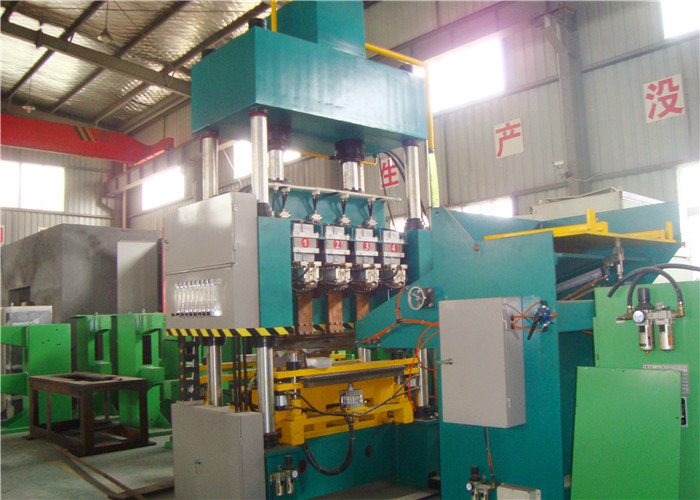

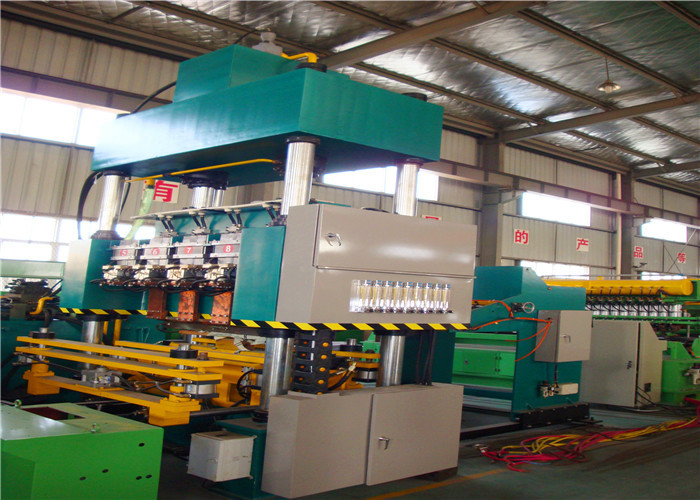

Medium frequency steel grating welding machine twist bar steel grating welding machine
machine details
Medium frequency (1000Hz) technology.
Panasonic, Schneider, Siemens, ABB electric components.
Touch screen interface.
Weld 2 bars one time, high production capacity.

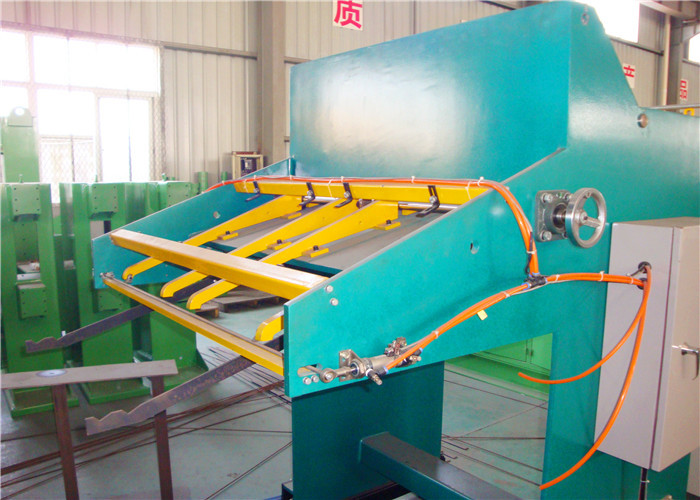

Automatically feed cross bars.
Servo motor for pulling steel grating.
Specially designed mould for fixing the flat bars.
| Model | DZ-GGB1200 | Welding frequency | 1000Hz |
| Bearing flat bar range | 2*19mm-10*100mm | Cross bar range | 5*5-8*8mm |
| Pitch of flat bar | 20-60mm | Pitch of cross bar | 38-160mm |
| Grating width | Max.1.2m | Grating length | Max.8m |
| Welding transformer | 250kva*10pcs | Needed power supply | Min.630kva |
| Max pressure | 160Ton | Welding times | 8-9s/time |
| Overall size | 32*3.8*4.8m | Weight | 13000kg |
Machine Characteristics
1. This machine adopts PLC program&touch screen, very easy to operate.
2. ABB diode&Schneider low-voltage apparatus, contactor
3. The machine adopts servo motorto pull grating mesh, more stable, high precision.
4. The machine adopts mesh mould to fix flat bar space. The flat bar space is fixed, flat bar thickness and width can be adjusted within range on one mould.
5. The machine can weld two cross bars one time. The cross bars are fed automatically instead of manual.
6. The machine adopts advanced medium frequency (1000Hz) technology.
COMPLETE LINE INCLUDING:
Grating cutting saw machine DP-GC, 1 set
straightening and cutting machine
