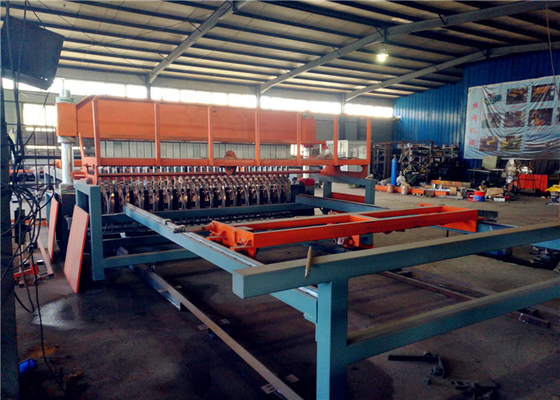

8.5T Reinforcing Mesh Welding Machine 65times/Min 2500mm Pneumatic Control Fully Automatic

Concrete steel bar welded wire mesh machine pneumatic control fully automatic

machine details:

machine advantage:

Panasonic, Schneider, ABB, SMC, Igus electric components.
Touch screen interface.
Pre-straightened & pre-cut wires.
PLC control of cross wire space adjustment and welding current adjustment.
Panasonic servo motor for mesh pulling.
Pure welding electrodes, 30*30*30mm (3-8mm), 30*30*50mm (5-12mm).
Cooling system: cast water-cooling transformer and lower welding electrode base.
Brake motor & reducer connect the principal axis directly.
Wire pre-load system.

 machine working progress:

1. Control system Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Weft wire hopper: the stepper motor drives the disk-type device to automatically drop wires, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no wire in the hopper, the equipment will automatically stop running.

3. Diameter wire feeding mechanism: Mitsubishi servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send diameter wire to the welding position. The equipment is automatically welded.

4. Mesh pulling mechanism: Mitsubishi servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special transformer for water-cooled welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances are made of Schneider, Tianzheng, Mingwei and other well-known brands to ensure the efficient and stable operation of the equipment.

7. The reinforcing mesh welding machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

10. The mesh pulling system in cycle is automatically calculated, no need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling.

11. The reinforcing mesh welding machine is equipped with 13PCS water cooled transformers. Each welding transformer is 165KVA.
